LJT1 NKE Angular Contact Bearing 1"x2 1/4"x5/8"

LJT1 NKE Angular Contact Bearing 1"x2 1/4"x5/8"

Angular Contact bearings are designed to accommodate a combination of both radial and axial loads. The ratio of radial to axial load capacity is achieved by varying the contact angle of the bearing.

NKE inch sized Single Row Angular Contact Ball Bearings are produced with a contact angle of 20° and they are manufactured as standard with a machined solid brass cage.

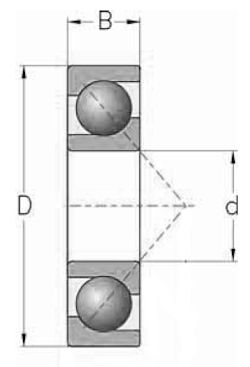

LJT1-NKE dimension chart - all dimensions in inches unless indicated.

d	D	B	Dynamic Load (N)	Static Load (N)	Limiting Speed Grease (r/min)	Limiting Speed Oil (r/min)
1	2 1/4	5/8	25200	15100	6500	12900
